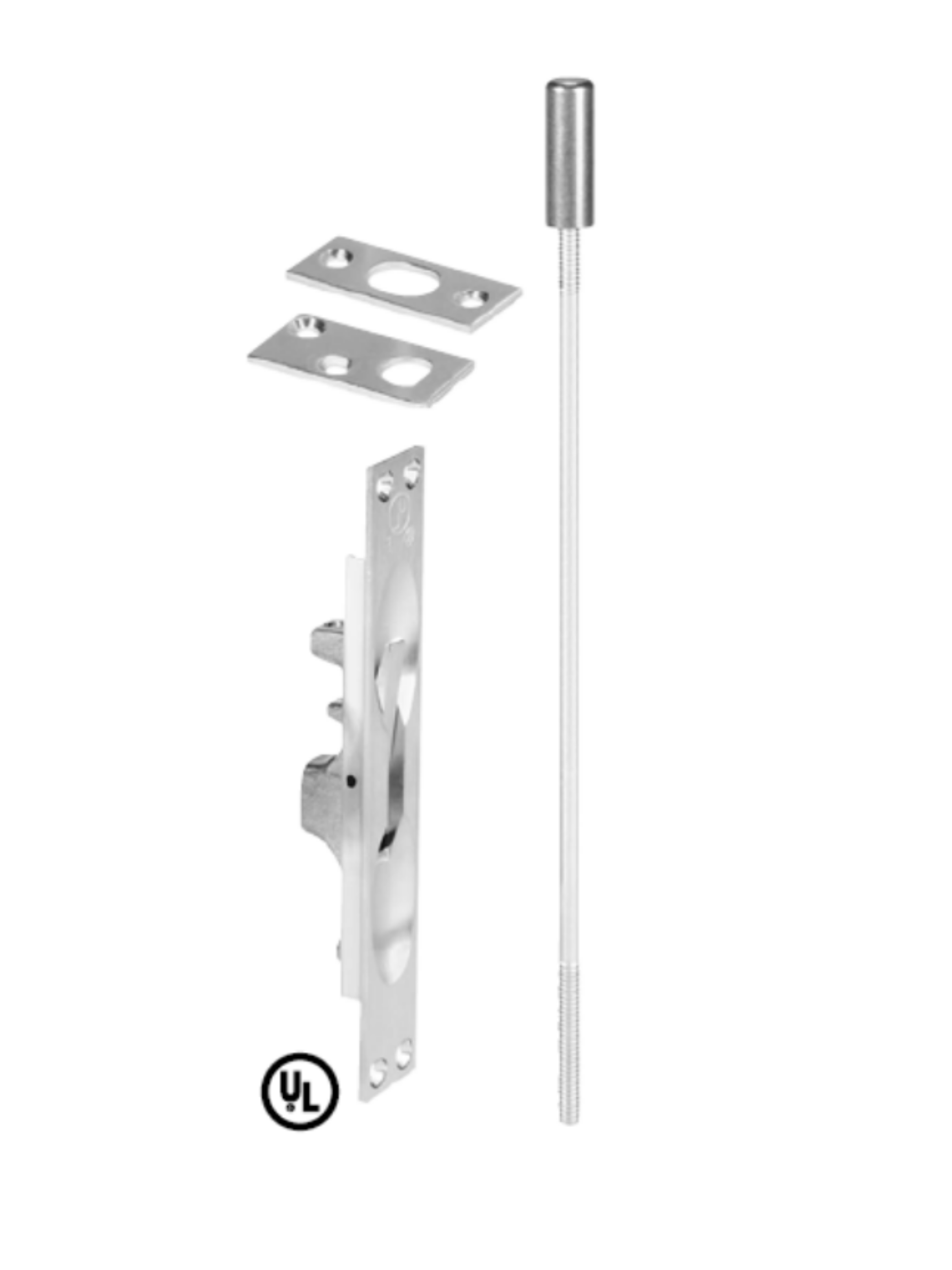

Rockwood 555 12" Lever Extension Flush Bolts

Material: Brass

Finishes: Available in standard architectural finishes (see page 9)

Fastener: 8 ea. #8x3/4" FH combo screws

Features:

• For Fire Rated Hollow Metal Swinging Doors measuring up to 4'w x 10'h rated up to and including 3 Hours
• Fits ANSI A115 door and frame preparation
• 3/4" bolt throw, 3/4" rod backset
• 12" rod length (center of face to bolt end - retracted)
• 11/2" adjustable bolt head

Options:

• Other size rods available are 18, 24", 36", 48"
• Extra long bolt head -2 1/2" (or to your specification)
• Use No. 570 Dust Proof Strike (shown on page E4) to prevent dirt blocking bottom strike
