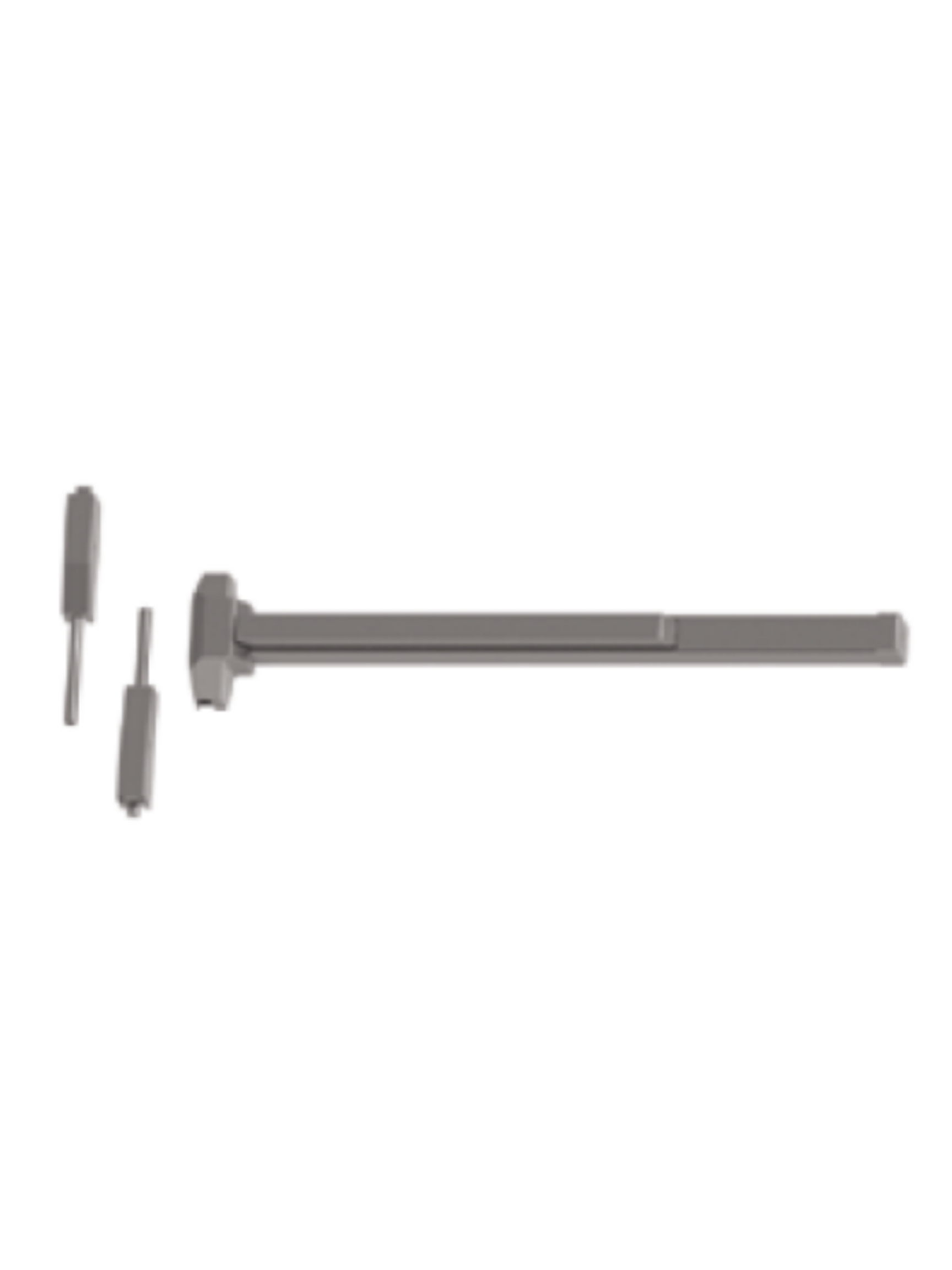

Hager 4700 Series Standard Duty Surface Vertical Rod Device

Certification: BHMA Certified Grade 1 (2014 Standard) and meets Life Safety Codes and Fire Requirements

Covers: Cast brass, bronze, stainless steel, zinc

Cover Tube: Painted steel, plated steel, stainless steel

Specifications

Door Thickness: 1-3/4" (44 mm) - Standard

Door Width:

• 36" (914 mm) field sizeable to 30" (762 mm) door
• 48" (1219 mm) field sizeable to 36" (914 mm) door

Projection:

• 2-7/16" (62 mm) in undogged position
• 1-3/16" (30 mm) in dogged position

Vertical Rods:

• Rods for 7' (2134 mm) doors - 35-1/4" (895 mm) top rod length
• Rods for 8' (2438 mm) doors - 47-1/4" (1200 mm) top rod length
• Extension rod kits available, 2' (610 mm) or 3' (914 mm) for doors over 7'

Stile Width:

• 4-1/2" (114 mm) - minimum stile width required for single door and 5/8" (16 mm) stoр
• 4" (102 mm) - minimum stile width required for double doors
• 4-1/2" (114 mm) - minimum stile width required for double door x Rim device with double door strike
• All stile widths are measured from door edge

Notes:

• Escutcheon and thumbpiece pull plate trim is handed
• Apollo knob is not ADA compliant
• Recommended for use on appropriately reinforced doors
