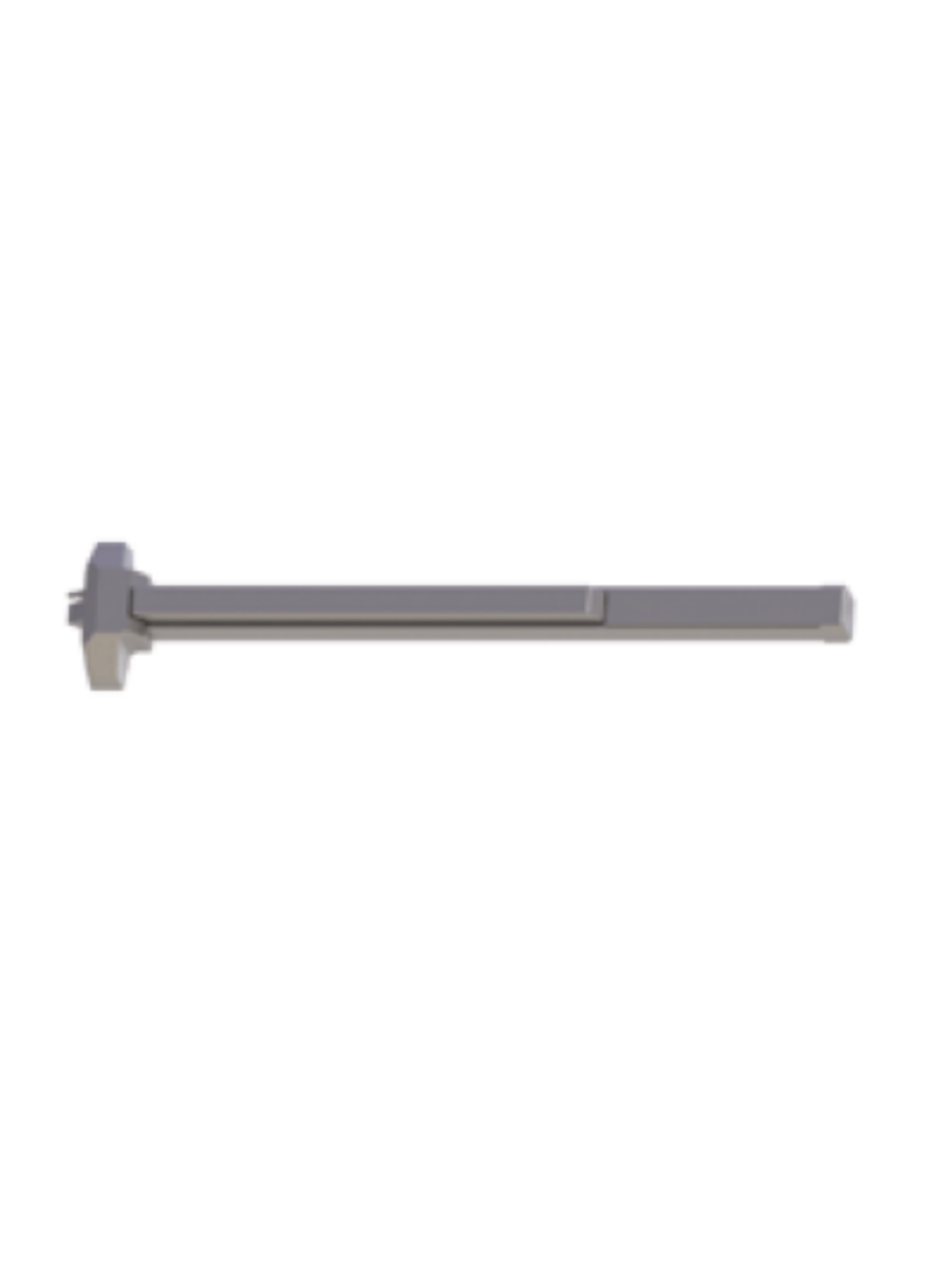

Hager 4700 Series Standard Duty Door Rims

Certification: BHMA Certified Grade 1 (2014 Standard) and meets Life Safety Codes and Fire Requirements

Covers: Cast brass, bronze, stainless steel, zinc

Cover Tube: Painted steel, plated steel, stainless steel

Dogging: Hex dogging feature standard on non-fire labeled doors

End Caps: Painted steel, plated steel, stainless steel

Specifications

Door Thickness: 1-3/4" (44 mm) - Standard

Door Width:

• 36" (914 mm) field sizeable to 30" (762 mm) door
• 48" (1219 mm) field sizeable to 36" (914 mm) door

Projection:

• 2-7/16" (62 mm) in undogged position
• 1-3/16" (30 mm) in dogged position

Stile Width:

• 4-1/2" (114 mm) - minimum stile width required for single door and 5/8" (16 mm) stop
• 4-1/2" (114 mm) - minimum stile width required for double door x surface vertical rod device with double door strike
• 5" (127 mm) - minimum stile width required for double doors with 2" (5 1 mm) mullion
• All stile widths are measured from door edge

Notes:

• Cylinders sold separately
• Escutcheon and thumbpiece pull plate trim is handed
• Apollo knob is not ADA compliant
• Recommended for use on appropriately reinforced doors
• Where fire rated rim x rim x mullion is used order 4916 Strike and Hook Kit

TRIM:

• 4700 Series escutcheon trim for rim device is available with a variety of lever options
• 4700 Series key-in-trim is available with a variety of lever options plus a knob option
• Pull plate trim
• Raised lip pull
• Rim cylinder x optional pull

Finishes: US3, US32D, ALM, DBZ, BLK
