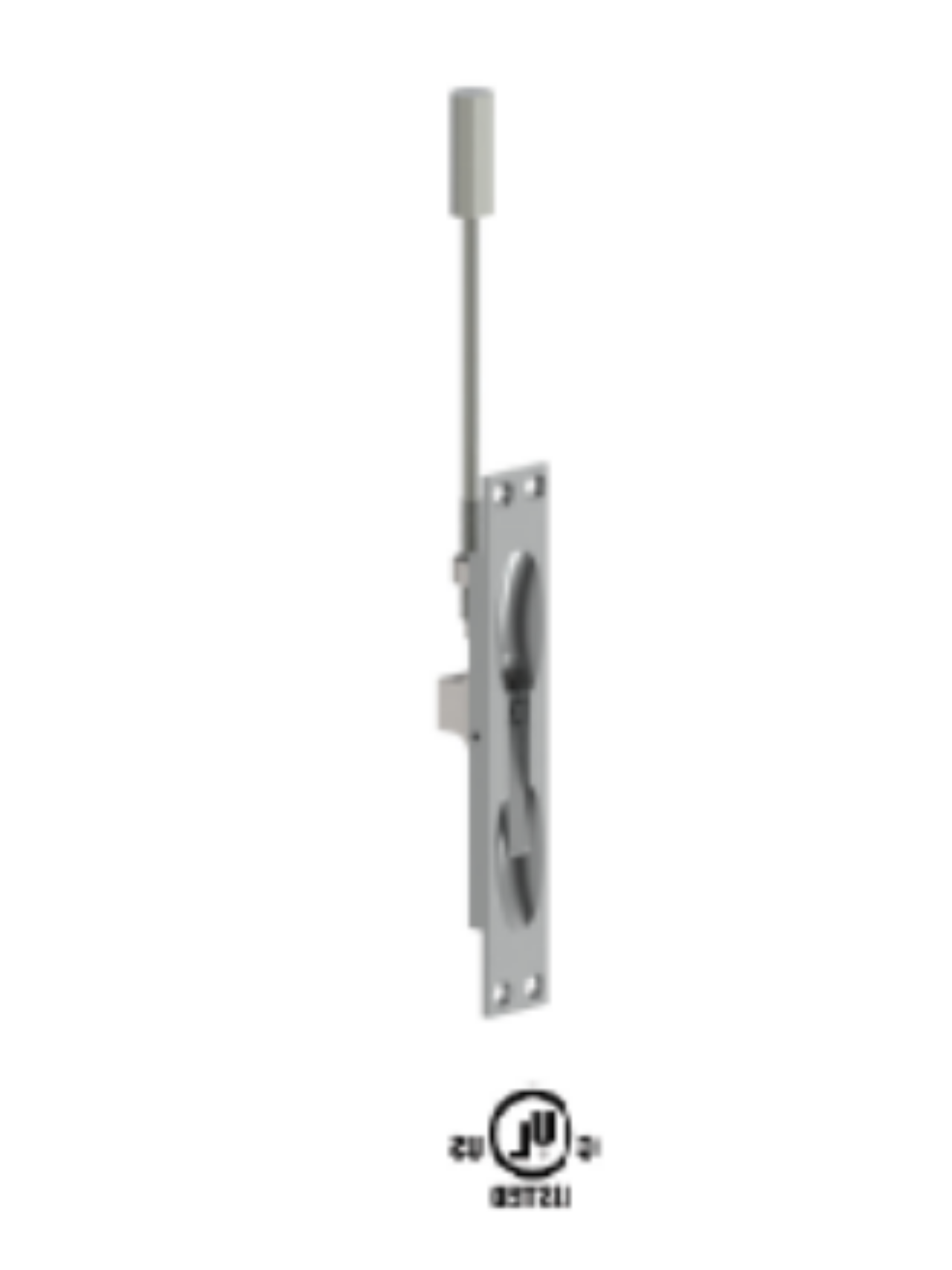

Hager 282D Manual Flush Bolt

Certification:

• Fits ANSI A115 door and frame prep
• Meets ANSI A156.16 for L04251

Face Plate: 1" x 6-3/4" (25 mm x 172 mm)

Bolt Head: 1/2" (13 mm) square

Bolt Throw: 3/4" (19 mm)

Standard Rod Length: 12" (305 mm) (center of face to corner of door)

Bolt Backset: 3/4" (19 mm)

Mortise Strike: 15/16" x 2-1/4" (24 mm x 57 mm)

Materials: Brass faceplate with steel components

Finishes: US3, US4, US5, US9, US10, US10B, US15, US15A, US19, US26, US26D

Fasteners: Eight (8) #8 x 3/4" combo screws; eight (8) #8 x 1-1/2" combo screws

Notes:

• For use on hollow metal/fire-rated doors
• Non-handed
• Bolt head rods are adjustable
• Priced as each and sold in increments of two
• 3 hour fire rating for metal doors up to 4 feet wide by 10 feet tall
• 2825 strike plate bag and 282P bolt head available
• Specify 282R for optional rod length of 18" (457 mm), 24" (610 mm), or 30" (762 mm) (bolt head not included)
